Acoustic Wall Build

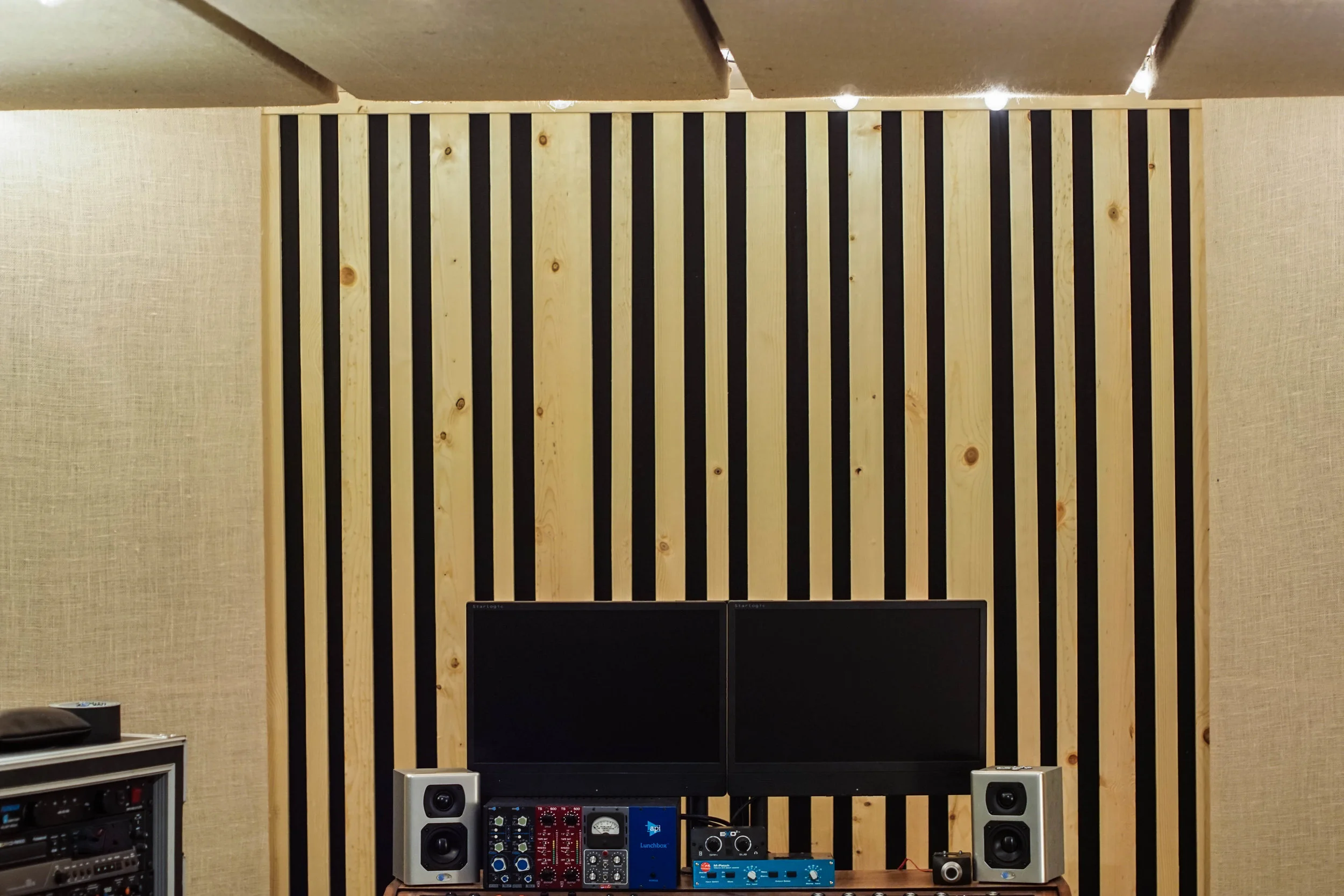

Last month we went to work on a much needed aesthetic and acoustic upgrade in our control room. What was once just a couple of windows draped with curtain is now a completed acoustic wall covered with natural pine slats over 4-8" thick rock wool material. This gives the room a great balance of absorption and diffusion, meaning: some of the high frequencies remain-- instead of being fully soaked up, they are scattered almost randomly to avoid hard, reverberant reflections. Rooms dedicated to mixing as their main purpose benefit from a great deal of bass trapping and broadband absorption, but also need to maintain some 'liveness' to provide some semblance of a realistic environment for the mix engineer.

The finished results were better than expected-- music emanating from our monitors feels bigger, more accurate, and more energetic.

There were some challenges along the way, as expected building anything into a 100 year old house-- the walls are anything but square.

Follow along below to check out the process:

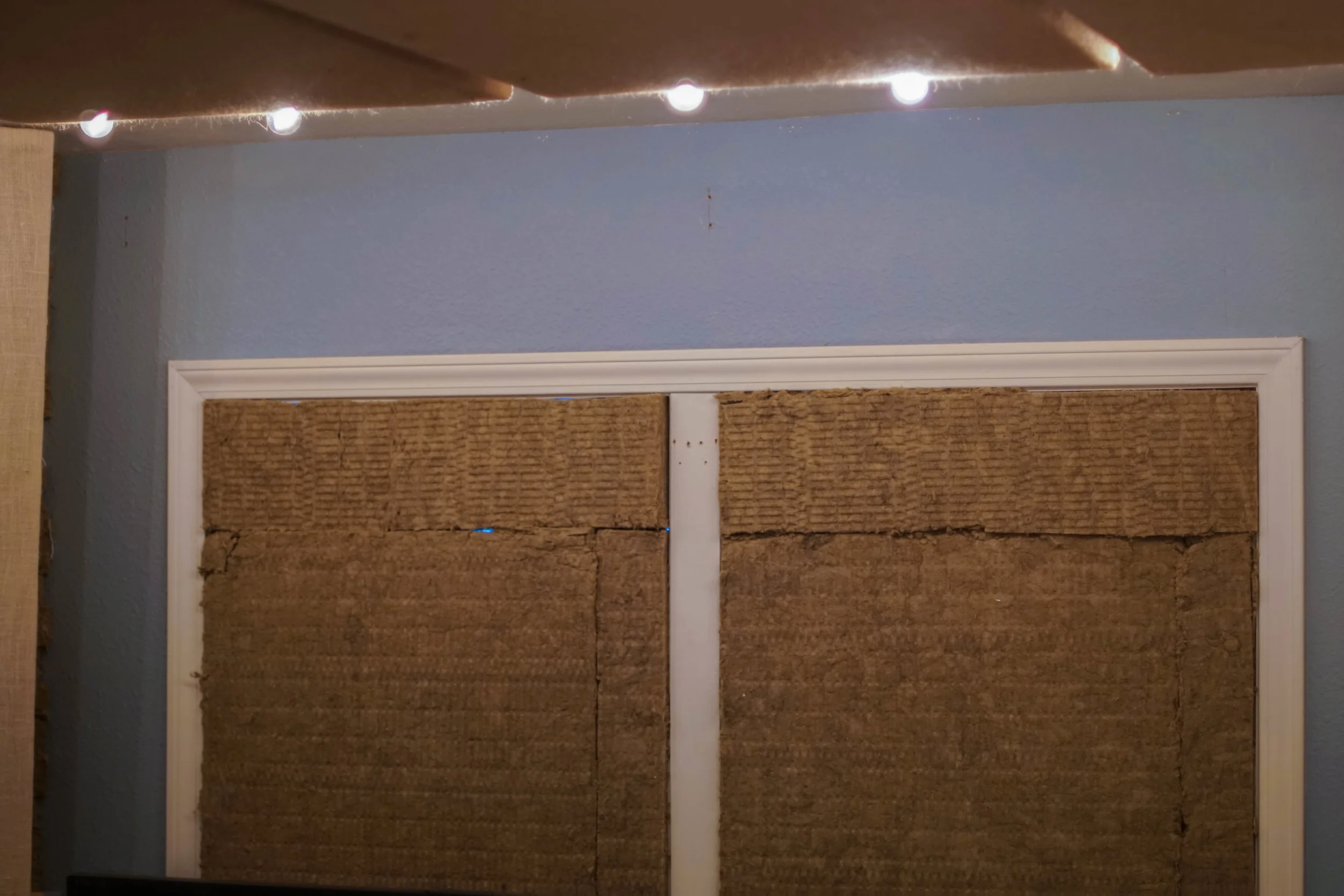

We started by filling the windows with two 2" rockwool panels.

We started by filling the windows with two 2" rockwool panels.

A basic frame was built around the area.

A basic frame was built around the area.

The frame was packed with two laters of 2" rockwool panels.

The frame was packed with two laters of 2" rockwool panels.

Black fabric stretched across the frame and stapled.

Black fabric stretched across the frame and stapled.

We then cut and spaced pine boards an inch and half apart.

We then cut and spaced pine boards an inch and half apart.

Almost done...

Almost done...

We then finished it off by placing a pine board on the top and bottom of the wall.

We then finished it off by placing a pine board on the top and bottom of the wall.
